Chimney Dampness Solved

Solving Chimney Discoloration & Damp
Table of Content — open

Chimneys can be problematic areas of an old property, chimney dampness being a common problem, for several reasons. Chimneys are:

  • Open structures: easily subject to rainwater ingress
  • Large, solid pieces of masonry: which can potentially store lots of moisture
  • Subject to fire and large temperature variations

Main Chimney Problems

As a result, here are the most common chimney problems.

1. Rainwater Ingress

Rainwater can easily find its way down and into the chimney stack as a result of wind driven rain. Rainwater can find its way into the chimney through the cracks of the mortar joints or through the flashing.

To minimize the rainwater ingress, chimneys can be capped.

Rainwater ingress not only leads to unsightly damp patches on walls along the chimney flue but the chimney soot washed down by the rainwater causes far more damages to the masonry than water.

Chimney-Problems2-core-conservation
Sources of rainwater ingress

2. Chimney Salts - Mysterious Dampness Problems?

Chimney salts can cause some of the most mysterious dampness problems on chimney walls. These can include discoloration, mysterious hazy damp patches, paint damages, the bubbling and crumbling of plaster which can even occur on internal walls or walls with closed off or decommissioned chimneys, leaving old building owners puzzled about the source of these problems. Chimney damp patches may come and go - they fade during the warmer summer months then suddenly reappear in full force after some intense rain.

In such cases, most of the time the poor pointing, wind driven rain or chimney leaks are suspected to be the cause of these problems, however a thorough inspection of the chimney (pointing, chimney stack and flashing) reveals nothing out of the ordinary. Sometimes, in a desperate effort to solve the problem, the chimney stack is completely removed, yet the dampness problems reappear after some time even if the chimney stack is no longer present.

The source of these problems is not caused by water ingress, but by the electro-chemical effect of salts. It is not a water ingress problem but a salts problem.

Here is what happens: chimneys are typically used for decades or centuries to burn logs or coal. During the burning process soot is formed, a fine black powder that is deposited along the chimney flue. Due to ongoing temperature and humidity changes, as well as rainwater leaks, the soot migrates into he mortar, finding its way near the surface, causing yellow, brown or black discolouration along the chimney walls.

But there is more to it! Salts in contact with water form ions, a fancy name for electrically charged molecules. Salt ions can attract and trap humidity (water vapours) from the environment, accumulating significant amounts of moisture. Moisture accumulation by salts results in hazy damp patches on the surface of the walls. Moisture tends to accumulate along the saltier areas of the plaster, as dampness is held in place by the electrical charges of the salt ions,

Once salts find their way into the building fabric, they cause a number of irreversible changes. During the winter period when the ambient humidity is high, salts liquefy and the damp patches expand. During the summer, when the ambient humidity is lower, salts tend to slowly dry out and the damp patches fade. However, during drying the salts also solidify and crystallize, expanding in volume 5-10 times. This volume expansion during drying leads to the physical breakdown of brick, stone or plaster resulting in crumbling.

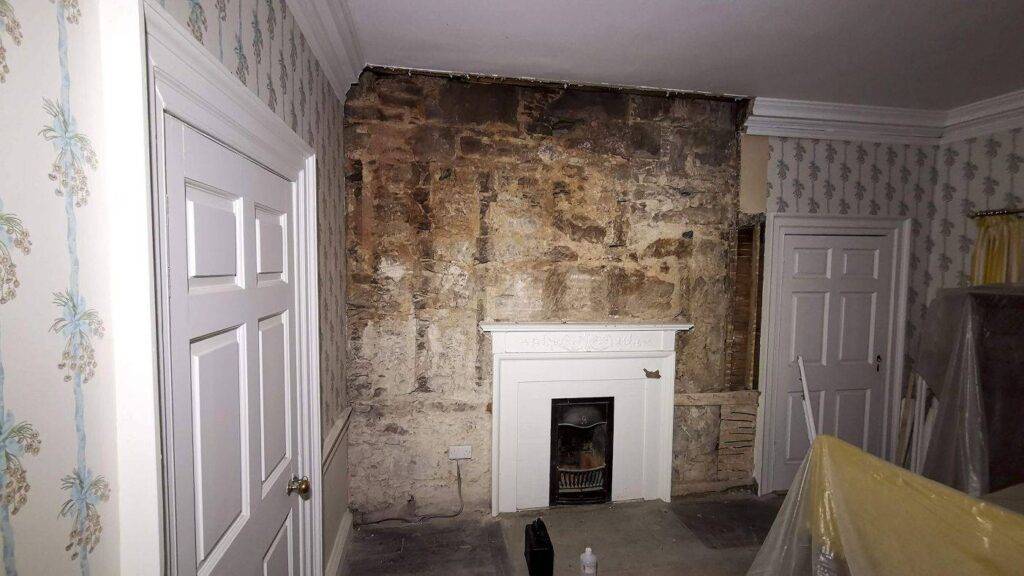

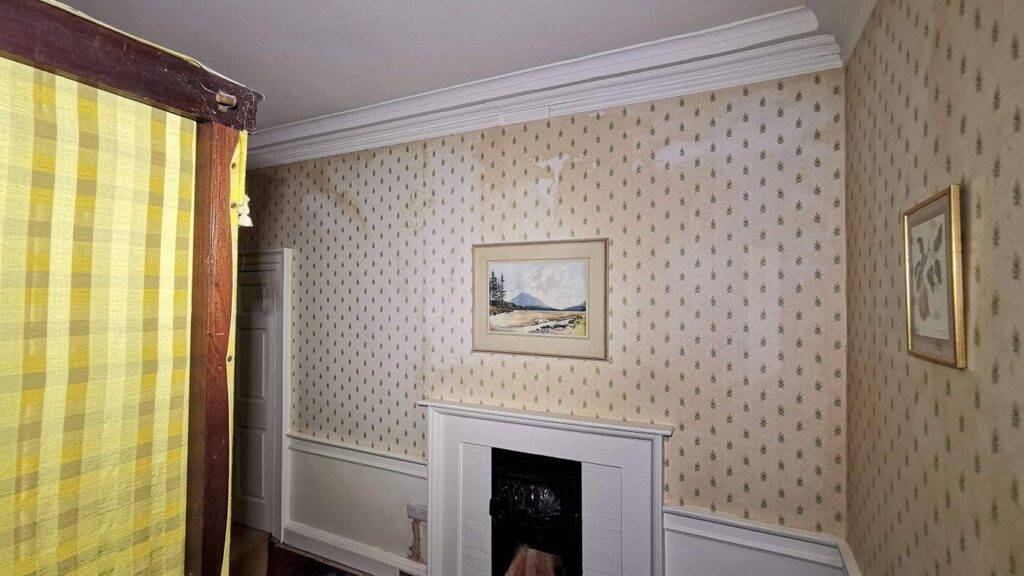

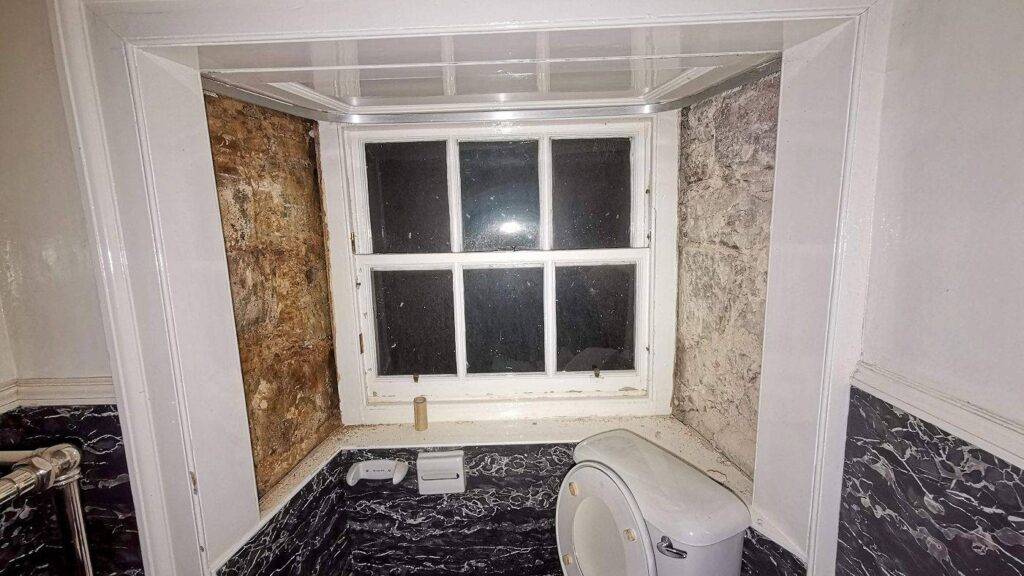

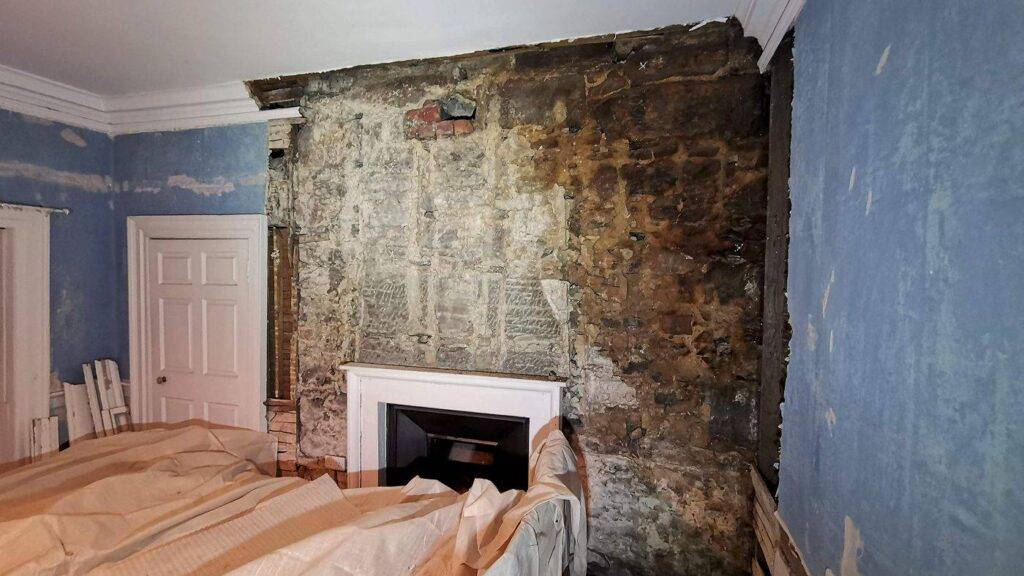

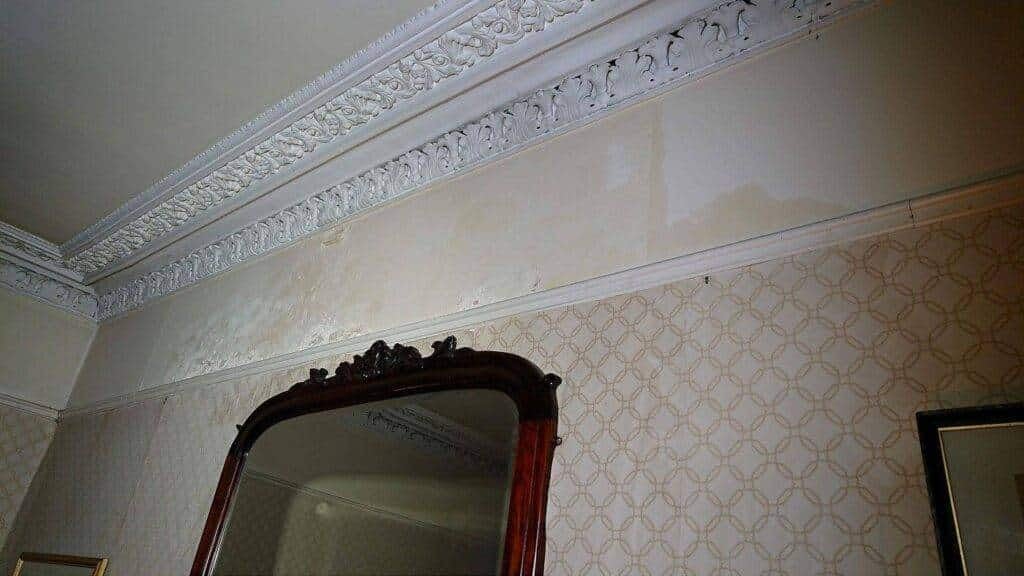

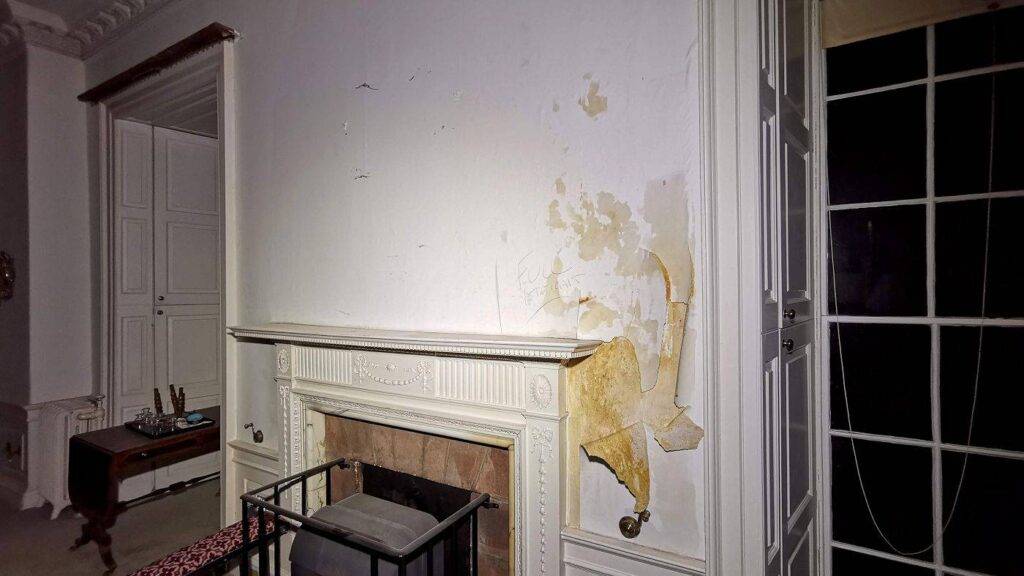

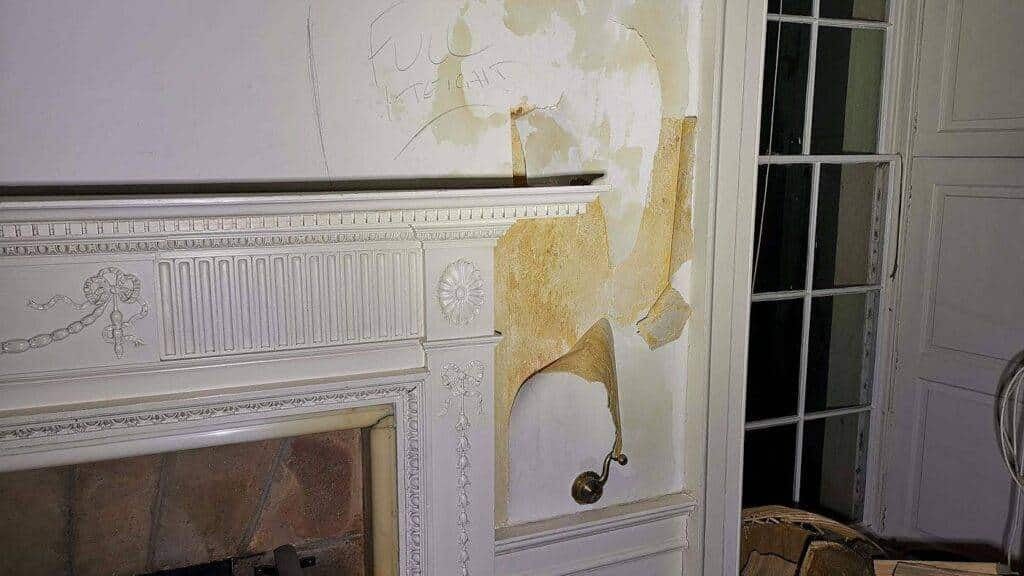

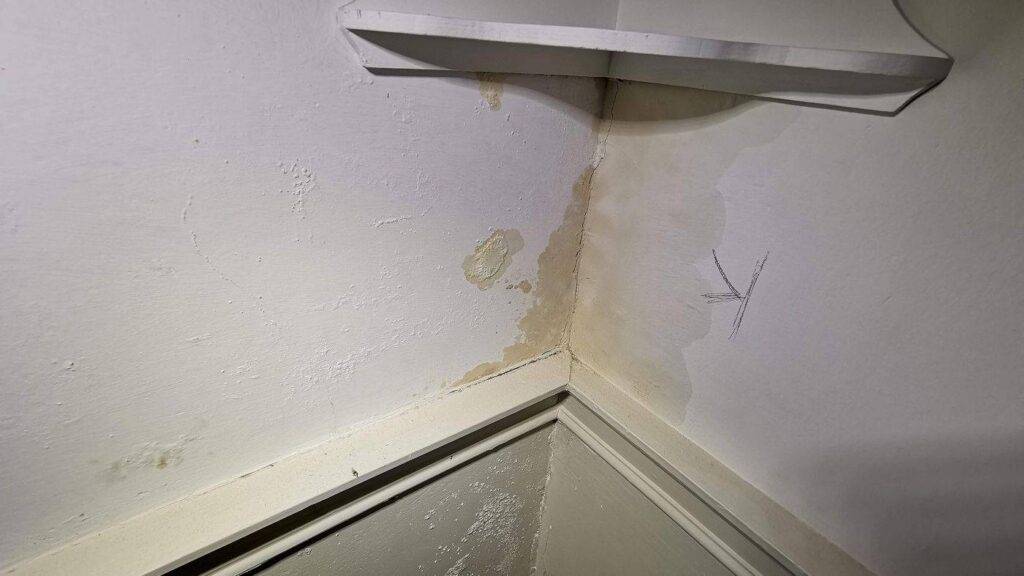

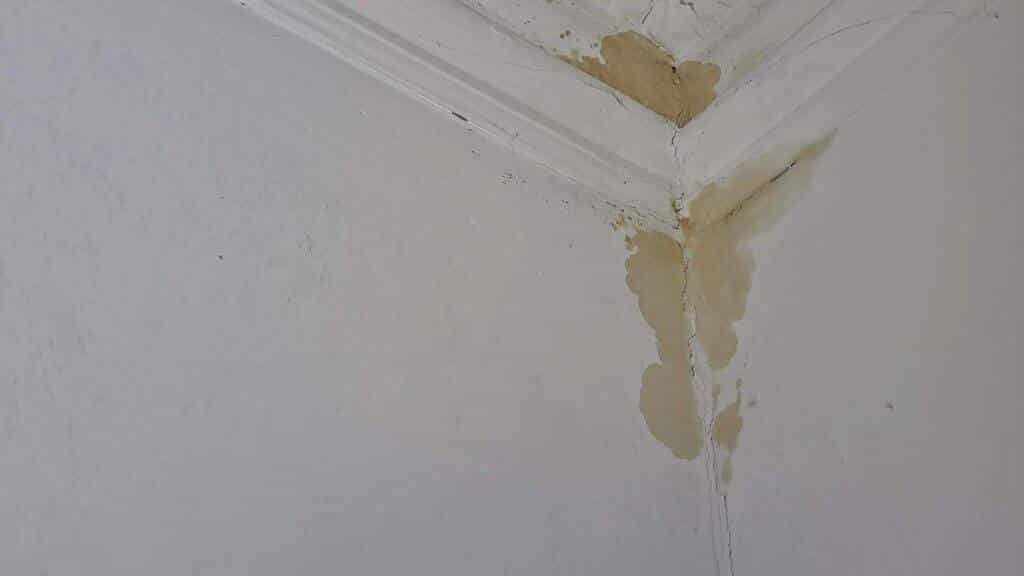

Here are are some examples of walls affected by soot and salts.

Salts cause major problems to old buildings, being the main cause of historic fabric loss. Research experiments have conclusively demonstrated that crumbling is not caused by high humidity but by salts. You can read more about the various problems caused by salts in old buildings here.

3. Rising Damp

Near the base of old chimneys, rising damp is one of the most common problems. Because old chimneys also contribute to the structural reinforcement of old walls, they can have a considerable size, thickness and volume. Sitting on the damp ground, they are affected by ground moisture which over time leads to the development of rising damp.

The thicker and the more voluminous a masonry is, the more water it can store, as highlighted by a prominent British research paper.

coreconservation view on rising damp water content32
Some facts and figures about rising damp

Chimney Dampness Solutions

Solving chimney dampness problems is not complicated with the right materials and know-how.

1. Solving Rainwater Ingress

Solving rainwater ingress is quite straightforward. A thorough chimney inspection can usually locate the points of water ingress and fixing that will resolve the problem.

2. Solving the Problem of Chimney Salts

Solving salts related problems is usually done by replastering.

The modern solution to this problem is replastering the affected walls with a sand-and-cement plasters and a gypsum finish, as nowadays most builders use modern materials. This solution has an apparent workability as cement plasters can withstand the effect of salts for longer than lime plasters. However, cement being a non-breathable material it actively contributes to the build-up of moisture inside the masonry leading to all sorts of dampness problems longer-term - hence cement should NOT be used in older buildings.

In order to keep the wall fabric breathable, replastering with lime is a much better option. However, regular lime plasters in a damp and salty environment are often not resilient enough to withstand the effect of salts long-term, resulting in their premature breakdown.

Dealing with high humidity and the destructive effect of salts requires special lime plasters. These are ancient plaster mixes initially used by the Phoenicians and Greeks, then rediscovered and perfected by the Romans throughout the centuries. Being outstanding architects and builders, the Romans have observed that adding to lime certain volcanic sands and ashes (also known as natural pozzolans - highly porous and breathable lava materials), these can significantly alter the properties of lime while retaining its breathability.

Through the skilful use of different types of volcanic sands and ashes, the Romans have created many types of lime mortars with outstanding properties - some of them becoming waterproof or able to set underwater, or becoming highly resistant to salts resisting seawater.

These volcanic lime mortars have been extensively used by the Romans in very demanding environments including sewers, ports, spas and aqueducts and they have survived for many centuries. They have also been widely used in Venice, as they perform extremely well in the humid and aggressive environment of the Venetian lagoon.

coreconservation solutions natural pozzolan01
Natural volcanic pozzolan under the microscope: reveals a highly porous, breathable pore structure

Traditional pozzolanic Roman mortars differ significantly from today’s modern NHL (Natural hydraulic lime) mortars.

NHL mortars - a mix of lime and clay - need to be fired at higher temperatures than normal (air) limes for the lime and clay to react. The higher firing temperatures and more heat partially closes off the pores of NHL plasters, reducing their breathability. Thus, NHL plasters trade-off breathability for improved water resistance.

Roman mortars use lime and volcanic materials. These are mixed at room temperature without heat as the volcanic sands and ashes have already been pre-burnt by the volcano. This keeps the pores structure open resulting in high breathability. The volcanic ingredients make the plaster highly resistant to dampness and salts, making these Roman mortars perform extremely well in damp and salty environments.

The commercially available material today is the Rinzaffo MGN lime plaster. It comes in 25 kg bags with all necessary ingredients pre-mixed, requiring only water. Once it hardens it becomes waterproof, extremely resistant to all salts (chlorides, nitrates, sulphates), yet thanks to its porous volcanic lava ingredients, it stays breathable allowing the wall fabric to breathe.

This plaster - depending on where it's used - performs several important functions:

  • Liquid moisture barrier: as a result of its special pore structure, this plaster acts as a selective moisture barrier, stopping liquid water while allowing the passage of vapours.
  • Salt barrier: this plaster acts a salt barrier, protecting subsequent lime coats from premature decay caused by dampness and salts. As a result the longevity of lime plastering increases by about 10 times.
  • Consolidates the frail, crumbly masonry, providing a solid, dry, breathable surface to build on.
  • Internal humidity regulator: by stopping liquid water it regulates the internal humidity, creating a drier, healthier, warmer, more comfortable climate.
  • Improves the performance of thermal insulation by keeping any thermal plaster applied on it dry. A dry insulation performs thermally much better than a moist or damp insulation.

This lime plaster is made exclusively of natural materials. It contains no chemicals nor additives. All prime materials as well as the final product is certified.

Thus, the Rinzaffo MGN plaster is a lime plaster that acts as breathable water and salt filter. Due to its small pores it blocks liquid water. Due to its open pore structure allows the wall fabric to breathe. Having no salt content of its own, it does not introduce salts into the masonry. Being waterproof, it becomes impervious to salt penetration and crystallization, resulting in an extremely long service life even in very demanding and damp environments (e.g. basements).

To resolve the damp patches and discolouration of chimney areas permanently, the following renovation schedule is recommended:

  • Hack off the existing plaster to stone or brick. Do not just skim over the existing plaster!
  • Clean all surfaces well to be free of dust and salts.
  • Apply a min 10 mm coat of Rinzaffo MGN Roman salt-resistant lime base coat across the area being renovated.
  • Apply a good quality decorative lime coat or a lime thermal plaster.
  • Apply a good quality lime finish.

The renovation process is outlined below.

chimney-before-white-core-conservation
Chimney salts before
chimney-after-whiter-core-conservation
Chimney salts after

3. Solving Rising Damp

Rising damp can be addressed in a number of ways, depending on the age, type and construction of the building, as well as the severity of rising damp. These aspects are discussed in detail on the rising damp solution page.

For more information, please see below a list of recommended plasters for resolving chimney problems, along with a list of technical pages, projects, image galleries and videos related to these solutions.

Recommended Products

Here are the typical recommended materials / products for this solution. Other plaster variations are possible as we have different types of main coats (normal or thermal) and finishes (smoother, grainier, coloured etc.) depending on your needs or application. Please get in touch to discuss additional options.

Completed Projects

Here are some of our projects using this solution:

More Information

Here are some related pages with additional technical information, giving you a more in-depth understanding of this topic.

Photo Galleries

Here are some photos demonstrating this solution. Click on any image to open the photo gallery.

1 found
Dealing with Excess Salinity - Salt Warehouses of Venice (Magazzini del Sale)

The Salt Warehouses of Venice (Magazzini del Sale) date back to the beginning of the 15th century. They were built to store a very precious trade commodity: salt. Situated across 9 large halls, the salt warehouse could hold up to 4500 tons of salts.

As a result of its location (Venice) and its use (a salt storage) it is probably the most salty building fabric in the world. The only lime plaster capable of withstanding such an extremely salty environment is the Rinzaffo MGN Roman salt-resistant base coat. This plaster is also gentle to the historic fabric – when it reaches its end of its life, it comes off gently without damaging the underlying historic (in this case the nearly 600-year old) wall fabric.

Videos

Here are some videos related to this solution. Please unmute the videos when playing them.

Showing videos: 1 - 4 of 4 total.

Any Questions? Need Technical Advice?

If you have any questions about a project, a problem, a solution, or any of our plasters - please get in touch.

We understand that each project is unique. Using the contact form below feel free to ask us any questions. Give us as much detail as you can about your project so we can get back to you with more relevant answers.

Are you in the process of buying / selling the property?
Preferred time for the survey? (tick all that applies)

Plaster Application

Here are some key application points about the application of each plaster, as well as links to the full application guides. Additional documents can be found on the individual plaster pages.

Rinzaffo

rinzaffo category

Base, Waterproofing

  • Clean the masonry: the plaster must be applied on a cleaned and uniformly wet substrate. All crumbling and loose parts must be removed by brushing so the masonry is free of dust, salts and oils. If possible, also wash the walls with a pressure washer; this will clean and wet the walls in one go. Close larger holes with lime mortar and pieces of bricks.
  • Must be the first coat: the Rinzaffo MGN plaster must be the first coat on any wall. It should not be applied on top of other parge coats or plasters because when those fail the performance of the Roman base coat will also likely to be affected.
  • No salt-inhibitors nor PVA bonding agents should be used before the application of the plaster. The plaster bonds well on its own.
  • Masonry paints should be removed (which occasionally can be challenging) so the plaster can firmly adhere to the underlying stones or bricks. Remove at least 50% of the existing paint – the more is removed, the better.
  • Mixing: mix the material with clean tap water only without adding anything else (no other material or additive), until a homogenous, creamy-consistency mix is obtained.
  • Wet the wall fabric abundantly before applying the plaster, as well as in-between each subsequent coat. Lime plasters need moisture as they set slowly in a damp environment. If the walls are already damp, there is no need to wait to become drier, you can proceed with the application of this plaster.
  • Level uneven surface first: very uneven walls (e.g. stone walls or crumbling old brick walls) are recommended to be patched up and levelled first before the application of a continuous coat, to ensure the consistency and required thickness of the base coat.
  • Application: apply the plaster in 10 mm coats.
  • IMPORTANT: Respect the thickness: do not under-spec the material. Apply min 10 mm (1 coat) for above ground level walls. Apply min 20 mm thickness (in 2 coats) for underground or extremely damp or salty walls. If more than one coat is applied, embedding a 10 x 10 mm fibreglass mesh is recommended between the coats – a standard practice in the industry.
  • IMPORTANT: Close all pores, no matter how small. Treat and apply the plaster as a tanking-grade material. Attention should be paid to compact it on the wall closing off all pores, no matter how small, leaving no gaps or holes where salts or liquid water could come through. Once an area has been completed, recheck that here are no missed holes, not even small ones.

    The plaster application video below explains the concept in detail.

  • Light key: give the plaster a light key using a wet brush. Do not cut into the material with the edge of a trowel.
  • IMPORTANT: Dark patches. Allow the plaster to dry for 48 hours. Ideally, the whole surface should dry out uniformly to light brown, however you might notice some dark or damp-looking areas exhibiting surface condensation. Dark areas indicate insufficient thickness of the plaster in raport to the amount of moisture behind it. This occurs in areas where the underlying wall fabric is very damp, the intense evaporation causing surface condensation.
    The fix is easy: apply extra material over such dark areas increasing the thickness of the plaster, closing off all pores. The increased plaster volume dilutes the vapour flow allowing the surface to dry.
  • Additional coats can be applied in further 10 mm increments. Use an embedded fibreglass mesh for extra reinforcement over the recommended thickness.
  • Application conditions: ambient and wall temperatures must be between +5 to +30°C during application. Surfaces should be protected from rain and humidity until they have completely dried (approx. 3 – 10 days depending on weather conditions).
  • IMPORTANT: Please watch the plaster application video below before applying the material. Unmute the video if it plays without sound.

Calcina Bianca

  • Clean the masonry: the plaster must be applied on a cleaned and uniformly wet substrate. All crumbling and loose parts must be removed by brushing so the masonry is free of dust, salts and oils. If possible, also wash the walls with a pressure washer; this will clean and wet the walls in one go. Close larger holes with lime mortar and pieces of bricks.
  • Mixing: mix the material with clean tap water only without adding anything else (no other material or additive), until a homogenous, creamy-consistency mix is obtained.
  • Recommended thickness: min recommended thickness for interior walls is 15 mm, for external walls is 20 mm.
  • Application: apply the plaster in 10 mm coats.
  • Additional coats can be applied in further 10 mm increments. Use an embedded fibreglass mesh for extra reinforcement over the recommended thickness.
  • Finish options: main lime coats can be optionally left without finishing. To have a finished surface any MGN finish can be applied: Calcina Fine MGN (white lime finish), Intonachino Arenino MGN (coloured lime finish) or Marmorino MGN (Venetian Marmorino finish).
  • Painting: as this is a breathable lime plaster, wall surfaces should be painted with a breathable mineral paint. Wallpapers and modern emulsion petrol-based paints, with no or limited breathability, should be avoided.
  • Application conditions: ambient and wall temperatures must be between +5 to +30°C during application. Surfaces should be protected from rain and humidity until they have completely dried (approx. 3 – 10 days depending on weather conditions).

Calcina Fine

calcina-fine-main-core-conservation

Finishing

  • Mixing: mix the material with clean tap water only without adding anything else (no other material or additive), until a homogenous, creamy-consistency mix is obtained.
  • Recommended thickness of the finish: 3-4 mm. For best results, the finish should be applied in two “half-coats” of 2 mm each, with a fine 3-4 mm fibreglass mesh embedded in-between. The mesh makes the finish more flexible, minimizing the appearance of fine cracks.
  • Various textured finishes can be achieved, depending on the finishing technique used:
    • Coarse finish: by finishing the surface with a sponge or wooden trowel.
    • Smooth finish: by using a stainless steel trowel, compressing and smoothing the semi-dry surface, the sand granules are pushed into the material, resulting in a smooth finish.
    • Washed finish: by finishing the surface with a sponge trowel. After the surface has hardened, the surface is washed with water and blotted with a sponge to bring out the aggregate, its specific texture and colour.
  • Painting: as this is a breathable lime plaster, wall surfaces should be painted with a breathable mineral paint. Wallpapers and modern emulsion petrol-based paints, with no or limited breathability, should be avoided.
  • Application conditions: ambient and wall temperatures must be between +5 to +30°C during application. Surfaces should be protected from rain and humidity until they have completely dried (approx. 3 – 10 days depending on weather conditions).
